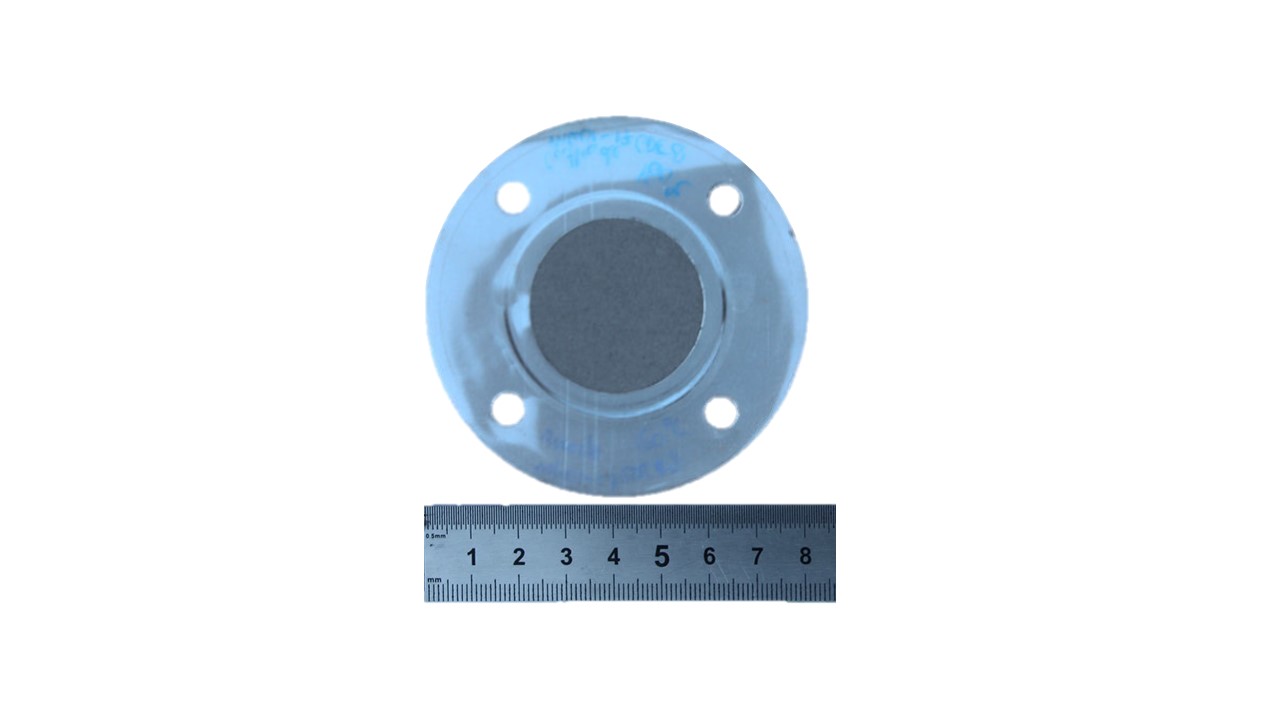

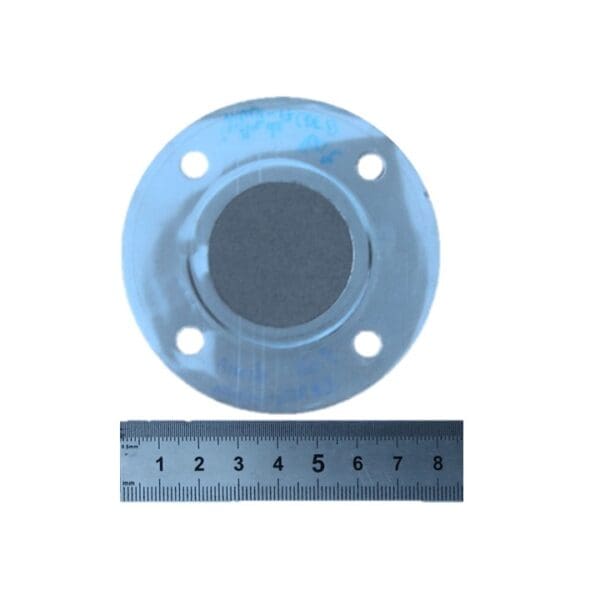

8cm² specifically designed for Proton Technologies 8cm² test stand. Proton Technologies offer standard MEAs for Fuel Cells, Water Electrolysis, Hydrogen Compression and Purification.
-
Fuel Cell
Anode electrode: SGL28BC GDL, 0.2mgPt∙cm-2
Cathode electrode: SGL28BC GDL, 0.4mgPt∙cm-2
Membrane: Nafion 211
Border: Standard PET 125μm
-
Water Electrolysis
Anode electrode: Titanium felt PTL, 1mgIr∙cm-2
Cathode electrode: SGL28BC GDL, 0.2mgPt∙cm-2
Membrane: Nafion 115
Border: Standard PET 125μm
-
Gas Compression
Anode electrode: Titanium felt PTL, 0.1mgPt∙cm-2
Cathode electrode: Titanium felt PTL, 0.1mgPt∙cm-2
Membrane: Nafion 211
Border: Standard PET 125μm
The 8cm² platform isn’t suited for pressures higher than the pneumatic piston can force therefore, this MEA isn’t equipped with a high pressure containment ring
-
Hydrogen Purification
Anode electrode: SGL28BC GDL, 0.1mgPt∙cm-2
Cathode electrode: SGL28BC GDL, 0.1mgPt∙cm-2
Membrane: Nafion 211
Border: Standard PET 125μm
These MEAs can be customized to your preferred specifications. Please contact us in order to get a quotation for your specific request.
