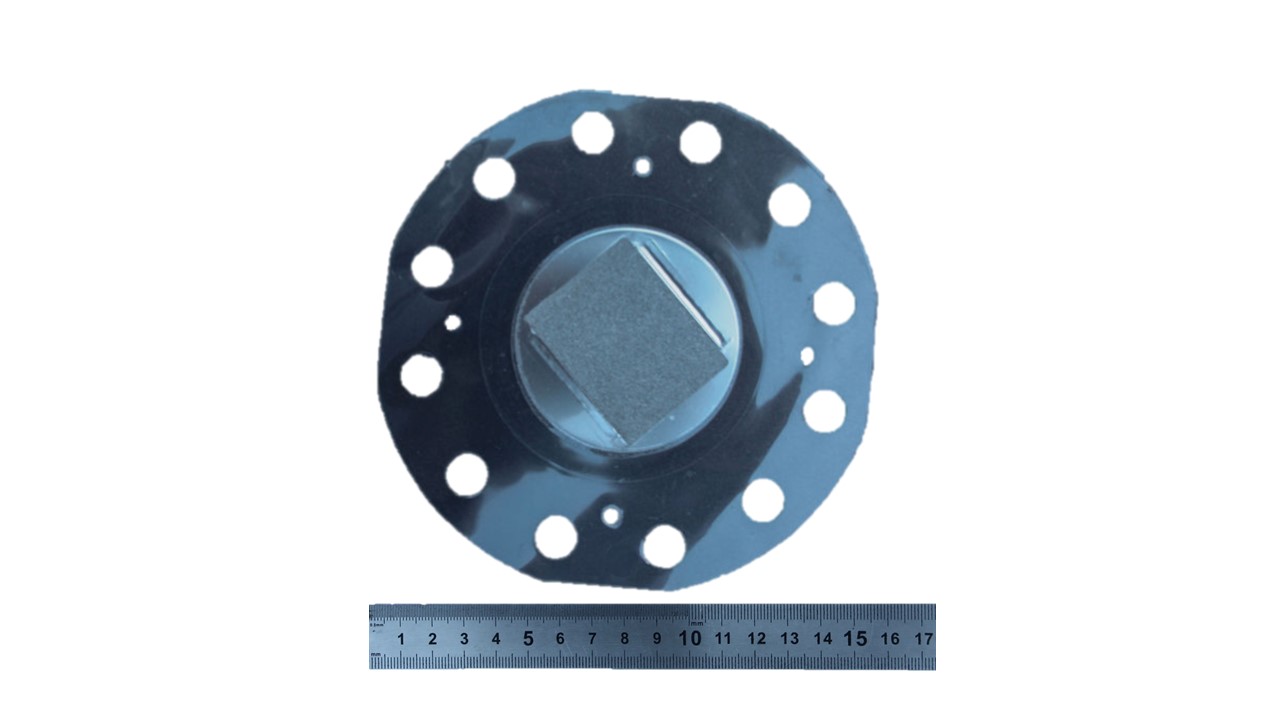

16cm² specifically designed for Proton Technologies 16cm² EHC compressor.
These MEAs can be customized to your preferred specifications. Please contact us in order to get a quotation for your specific request.
Typically this MEA has an anode and cathode loading of around 0.2mgPt∙cm-2 and a border thickness of 125 of a hard plastic. The type of membrane is depended on its intended use, in example; for as low as possible energy loss at high pressure differences Nafion 117 is recommended due to its low back diffusion properties. For fast compression to pressure differences in the range of 50 to a 100 bars, Nafion 211 would be recommended
All MEAs types are laminated with a high pressure containment seal, ensuring mechanical integrity of the MEA at elevated pressures
