Cell plates

Showing all 3 results

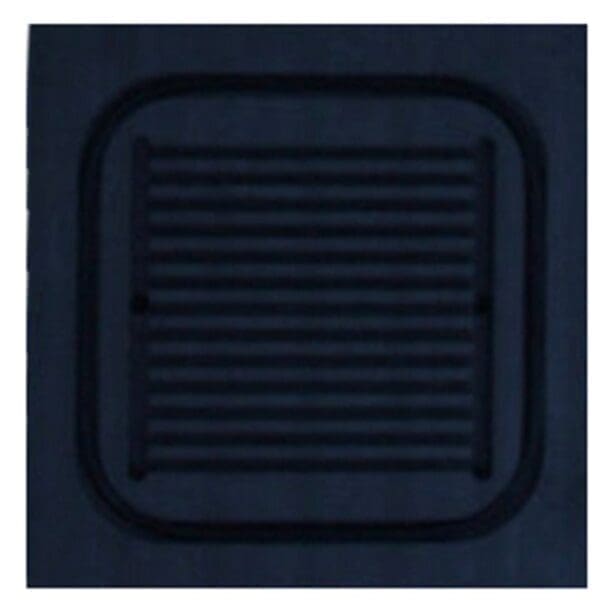

• 25cm² Graphite cell plates

  25cm² surface area is the next step for evaluation experiments of new types of catalyst or membranes. It is typically…

  From   € 400,00

  Incl. VAT

• 8cm² Graphite cell plates

  8cm² surface area is ideal for low cost evaluation experiments or new types of catalyst or membranes. It is typically…

  From   € 300,00

  Incl. VAT

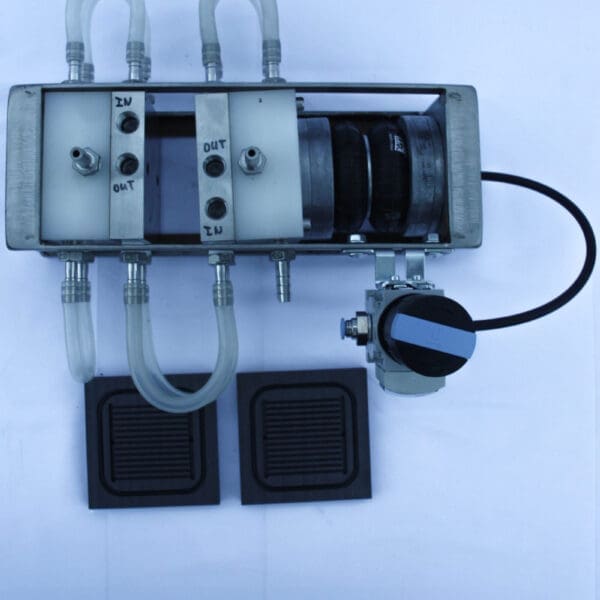

• Test frame 25cm²

  PEM components dedicated single cell PEM test frames are ideally suited for component evaluation. Their design allows for easy, tool-free assembly and disassembly, whilst maintaining a high level of reproducibility. The test frame can be equipped with various types of  cell plates, allowing its usage for not only fuel cells, but also for water electrolysis, hydrogen purification and low pressure compression (<5bar).

  The test frames come standard with internal humidifyers, removing the need for an external one. Temperature is controlled by a circulation heater (not included) and allows for de-ionised water or glycol based agents.

  From   € 7500,00

  Incl. VAT
